Shadow Line+

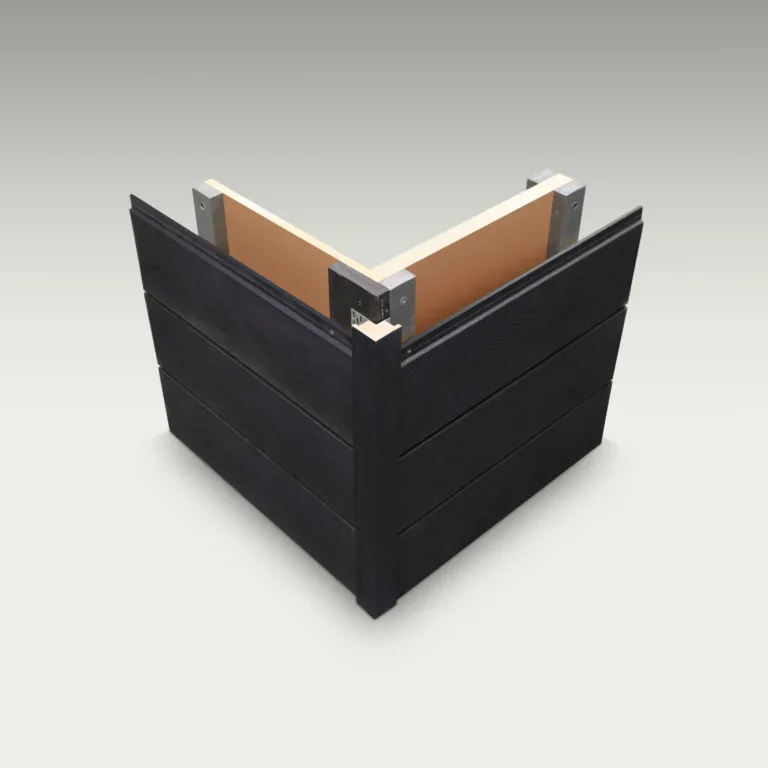

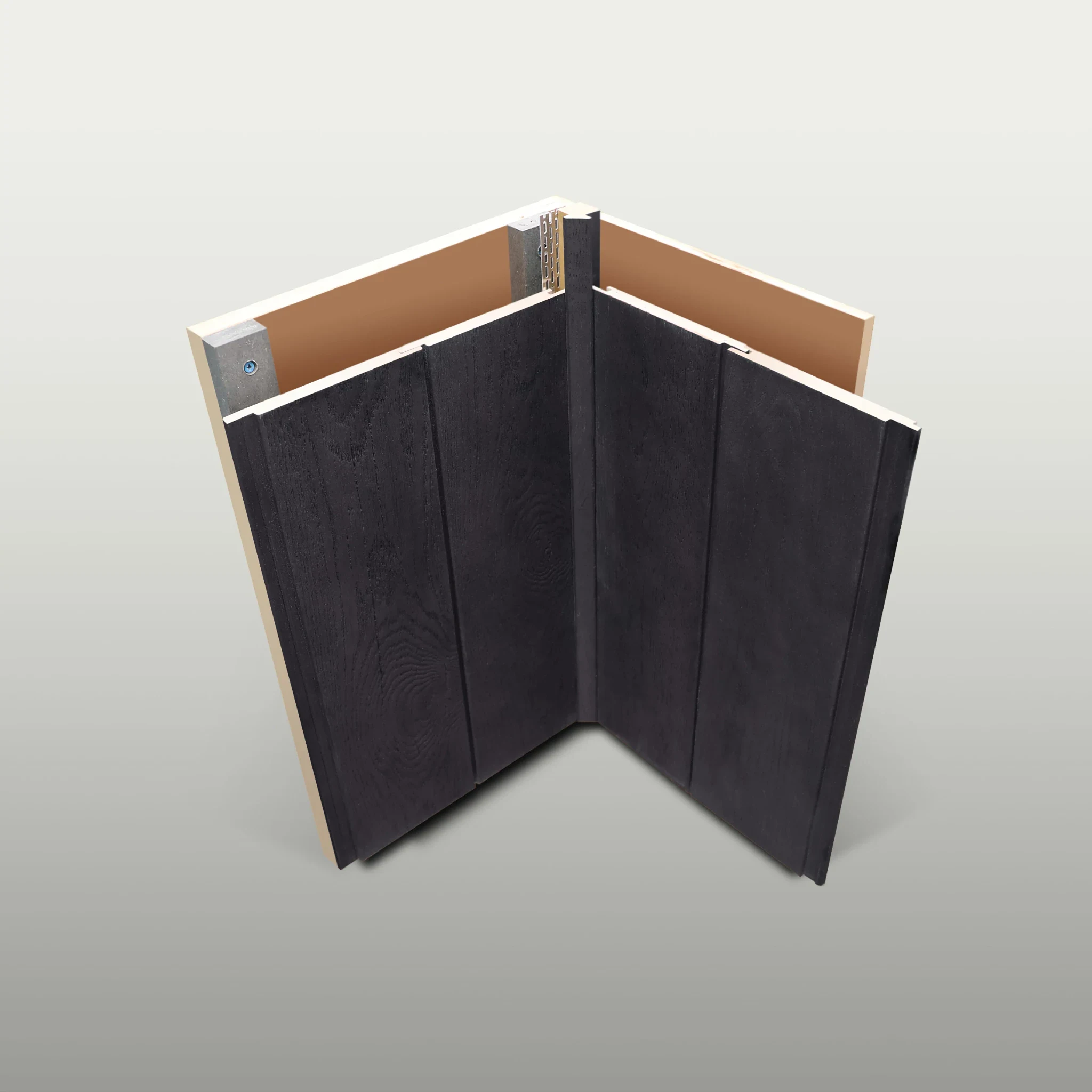

Internal Corner Profile

Euroclass D fire rated profile used with the Shadow Line+ boards to finish off the Internal corner of a building, fixed with the perforated closure and 20mm fixings. Available in eleven wood-effect colour options, including Ashwood, Golden Oak and Anthracite.

Construction: Fire rated flexible polymer resin
Size: 38x38x3050mm

Aluminium Trims

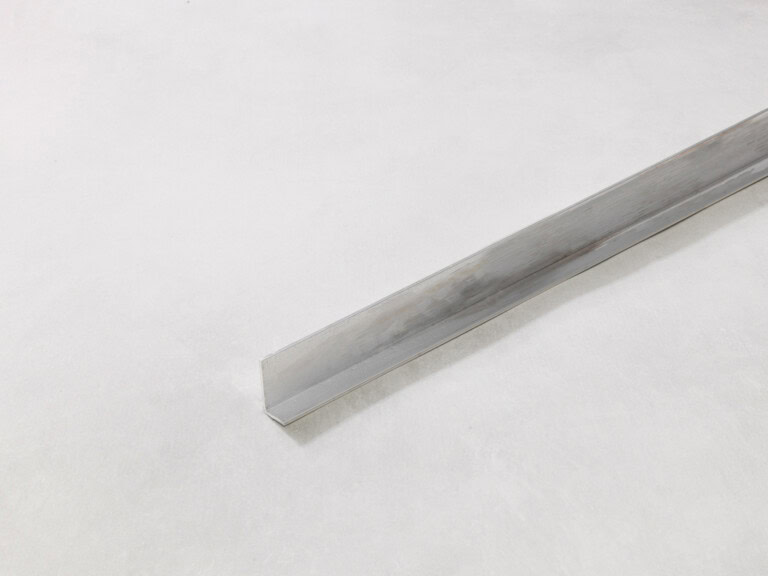

Vertical Starter Trim

Trim used to start the cladding at the bottom, when the cladding is fixed vertically. Fixed with the 20mm fixings.

Construction: Aluminium
Size: 25x13x2500mm
Product code: GT250L

Aluminium Trims

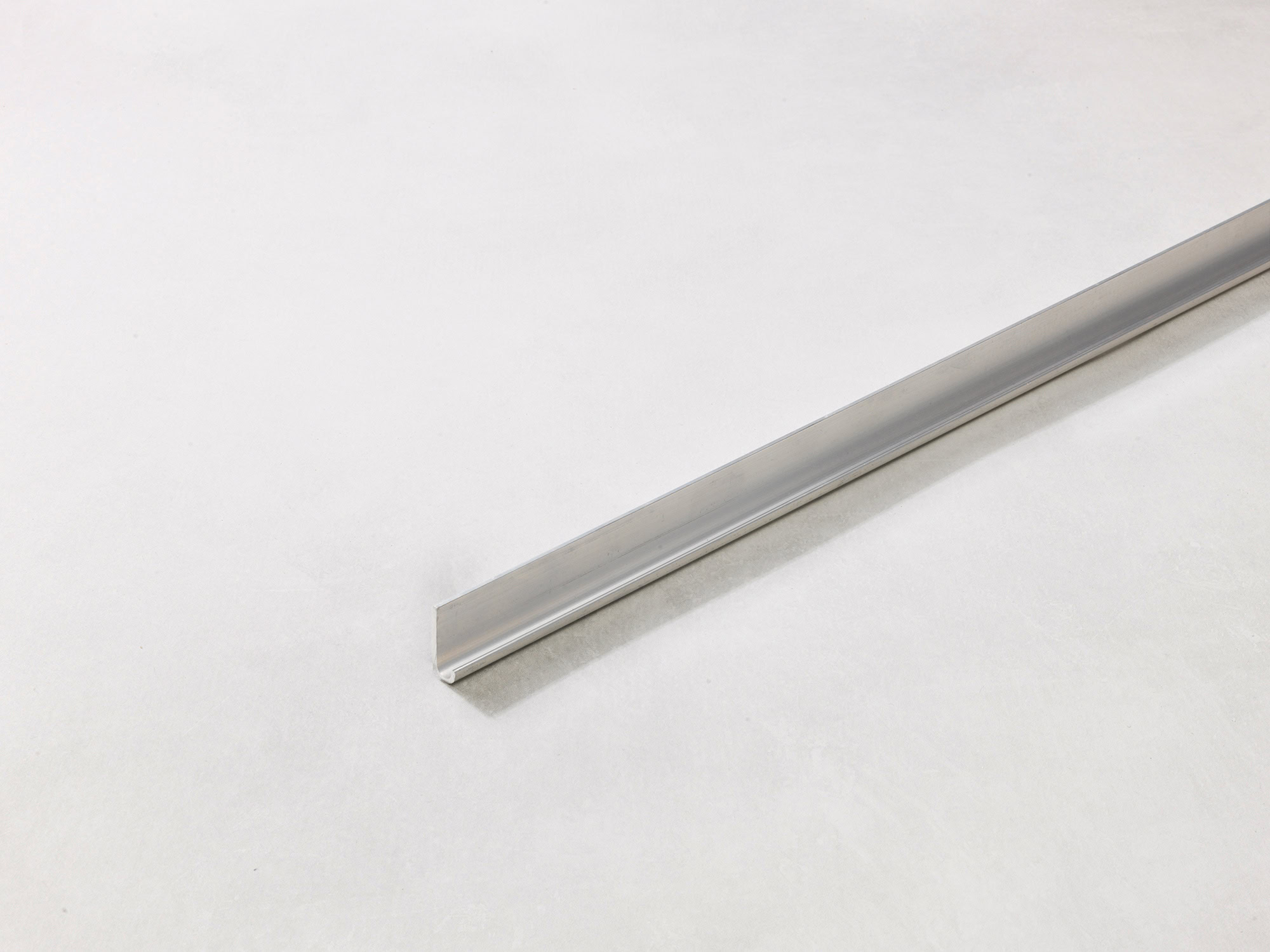

Horizontal Starter Trim

Trim used to start the cladding at the bottom, when the cladding is fitted horizontally. Fixed with the 20mm fixings.

Construction: Aluminium
Size: 25x10x2500mm
Product code: GT250J

Aluminium Trims

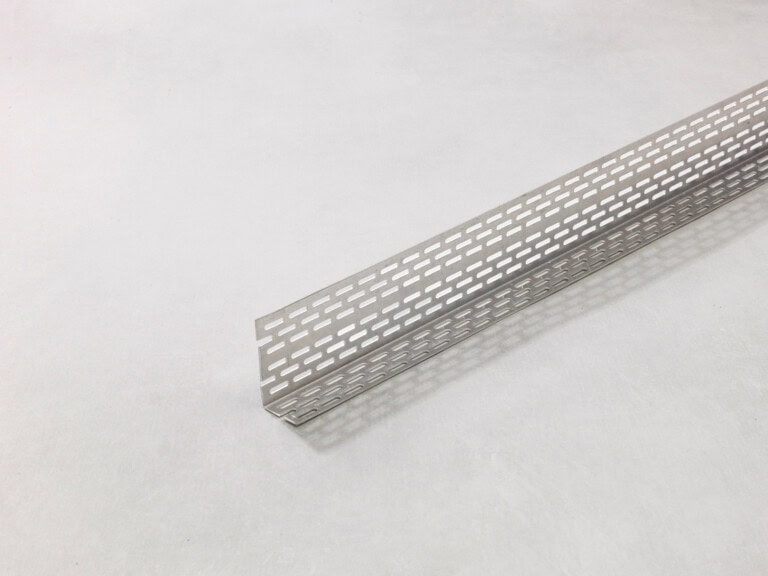

Perforated Closure Trim

Used to prevent insects and rodents getting into the ventilated cavity behind the boards, whilst allowing airflow. Fixed at the bottom of the cladding with the starter trim, also at the top on its own, as well as with the corner profiles. Fixed with the 20mm fixings.

Construction: Aluminium
Size: 25x50x3000mm
Product Code: GP300L

Frequently Asked Questions

Standard carpentry tools are suitable for cutting Millboard, but an aluminium cutting blade will be needed for cutting the metal trims. Standard tools such as a power drill will be sufficient for installing cladding accessories.
